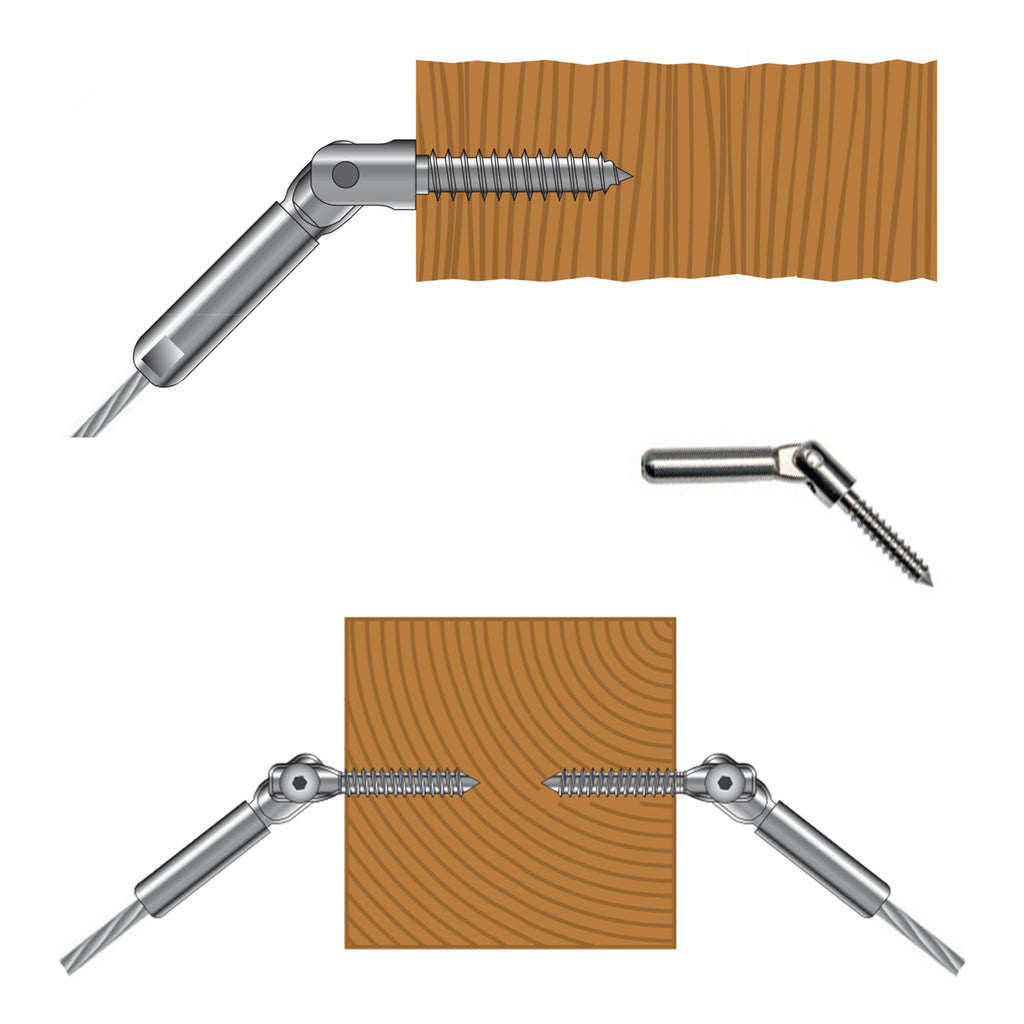

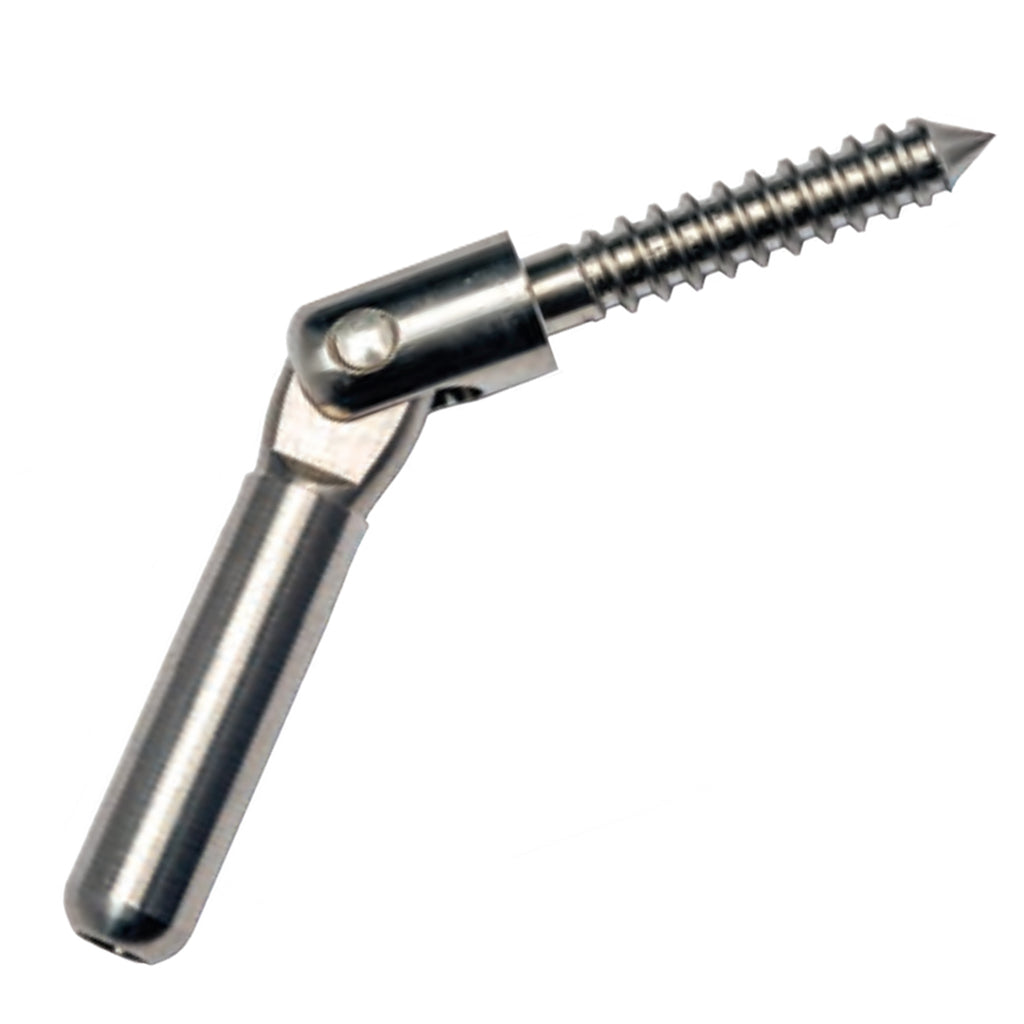

Our Stainless Steel Swagless Adjustable Non-Tensioning End for Angled Surface Mount can pivot up to 180° on each direction to accommodate any cable railing angle.

Works great on pitched or level runs, but, it has been designed for angled runs because the body of the fitting pivots at the clevis. Can be used with any other tensioning fitting on the opposite end of the run. The cable attaches manually with no special tools required with our push-lock automatic-locking jaws system.

• Made of 316 Marine Grade Stainless Steel

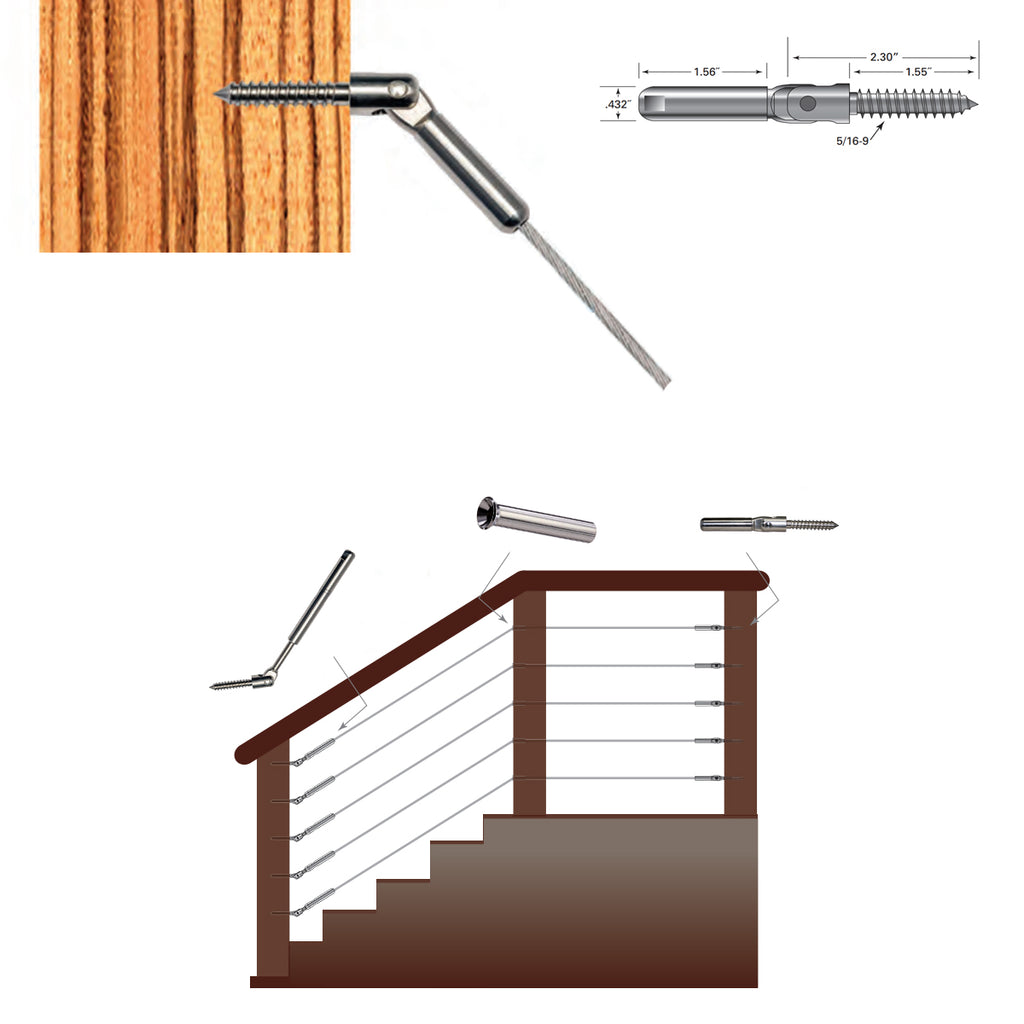

• Attaches to the inside face of newel post

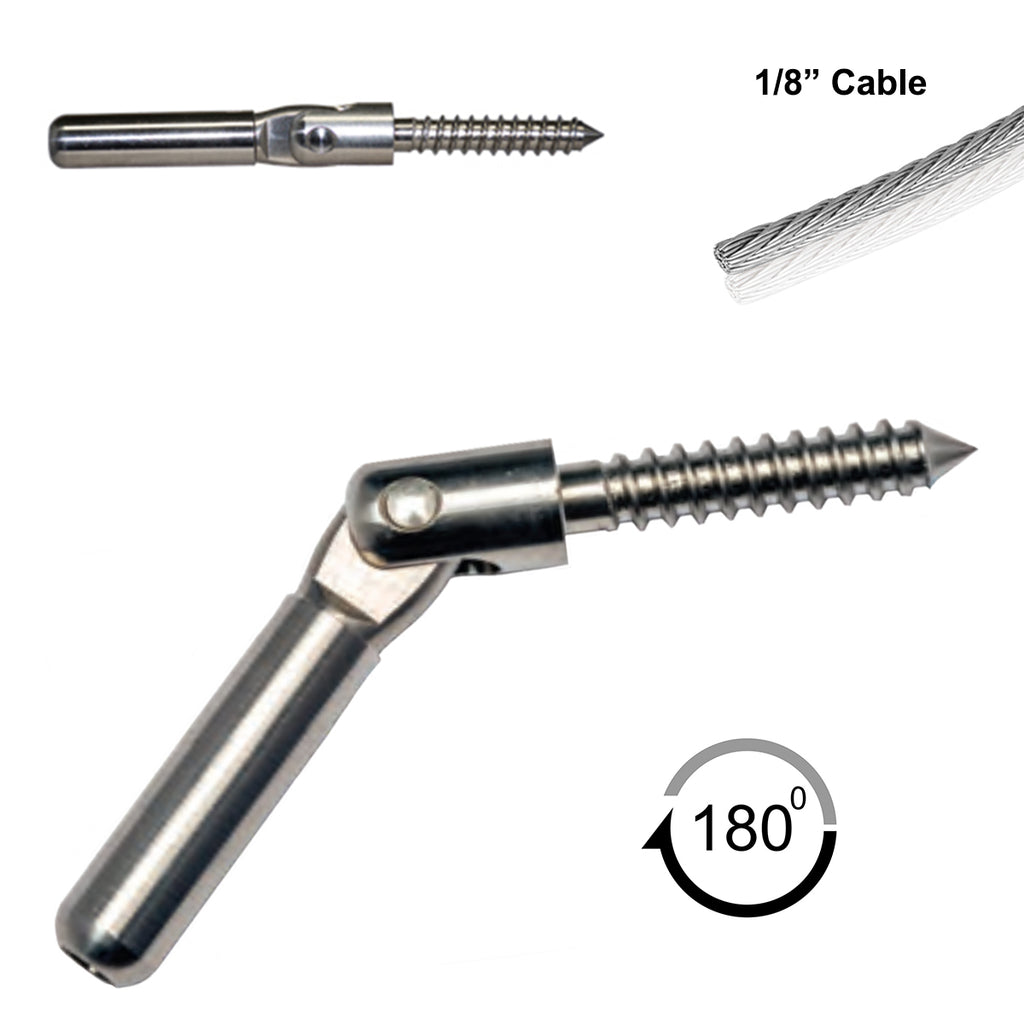

• For use with 1/8" dia. Stainless Steel Cable ONLY
• Can pivot up to 180° to accommodate any stair angle
• Screw Length: 1-1/2" x 1/4" - Overall Length: 4-3/16" - Width: 7/16" (11mm)
• Have no tensioning capabilities - Suitable for level or pitched runs
• Must be used with a tensioning fitting on the opposite end of the run

Our marine grade 316 stainless steel cable and fittings are perfect for both residential and commercial projects.

Note: Consult your local building code for specific requirements.
